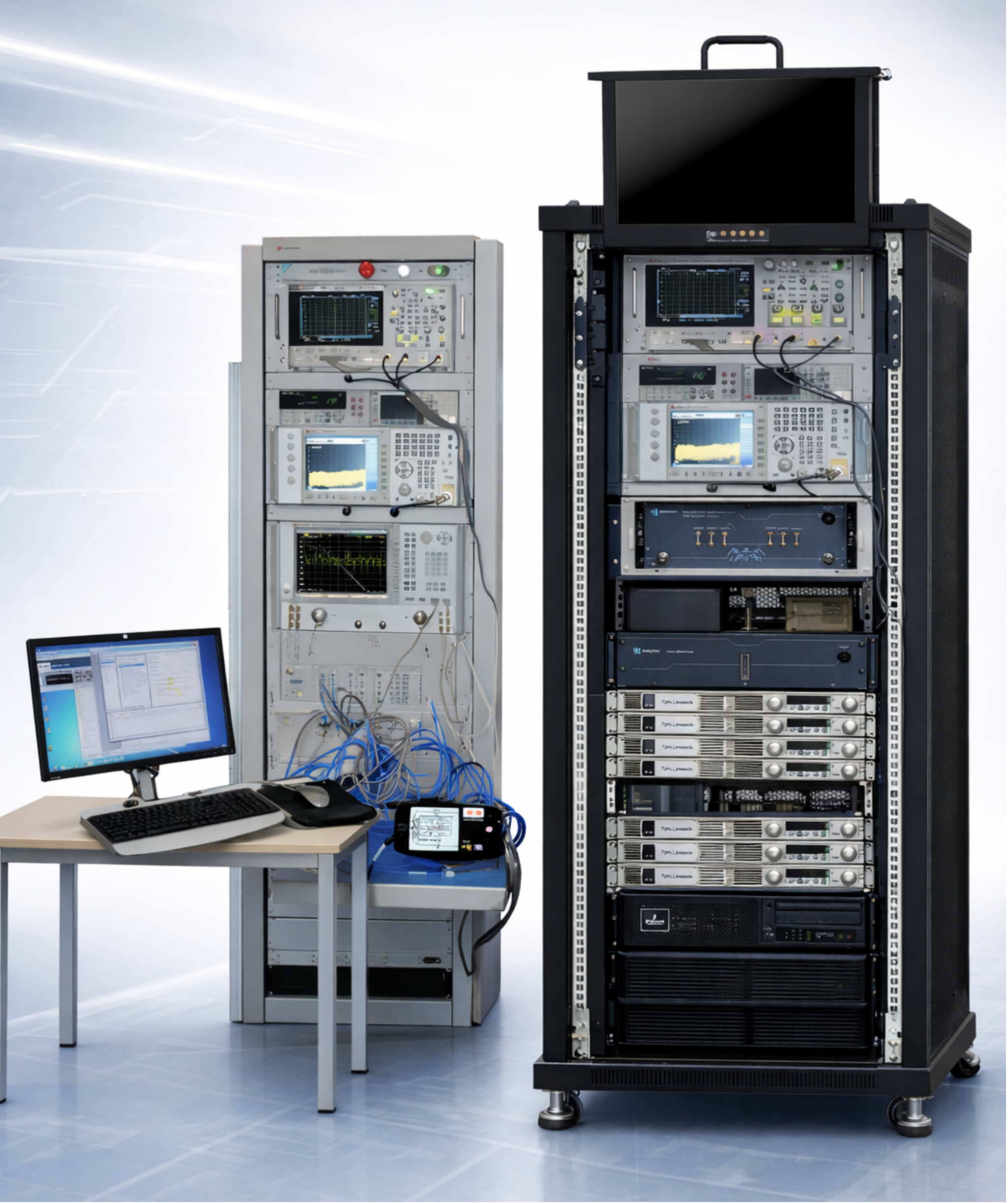

Multi Channel TRM Testing System

The Multi Channel TRM Testing System is a high-performance RF transceiver verification platform designed for rigorous testing of transmit/receive modules operating up to 26.5 GHz. Combining a vector signal generator, spectrum analyzer, power meter, and switch matrix into a modular, unified architecture, the system delivers precise, repeatable measurements of all critical RF performance parameters, including gain, noise figure, output power, linearity, and S-parameters, across both transmit and receive paths.

Purpose-built for aerospace, defense, and telecommunications applications, the system supports both manual and fully automated test workflows through integrated test automation software. Built-in RF path calibration with reference standards ensures measurement traceability, while high inter-channel isolation maintains accuracy across multi-channel configurations in laboratory and production line environments alike.

Features
  • Frequency range up to 26.5 GHz for wideband transceiver testing.
  • Capable of measuring S-parameters, gain, noise figure, linearity, and output power.
  • Modular hardware system: includes vector signal generator, spectrum analyzer, power meter, and switch matrix.
  • Integrated test automation software for streamlined operation.
  • Supports TX and RX path testing with load and control signal emulation.
  • High isolation and precision for accurate and repeatable measurements.
  • RF path calibration with built-in standards and reference devices.
  • Ensures performance compliance of RF transceivers under real-world conditions.
  • Reduces development and production time through automated testing.
  • Enables consistent and traceable measurements in critical applications.
  • Scalable system architecture adaptable to evolving testing requirements.
  • Enhances quality control and reliability for RF module manufacturing.
