RF Test Set

RF Test Set

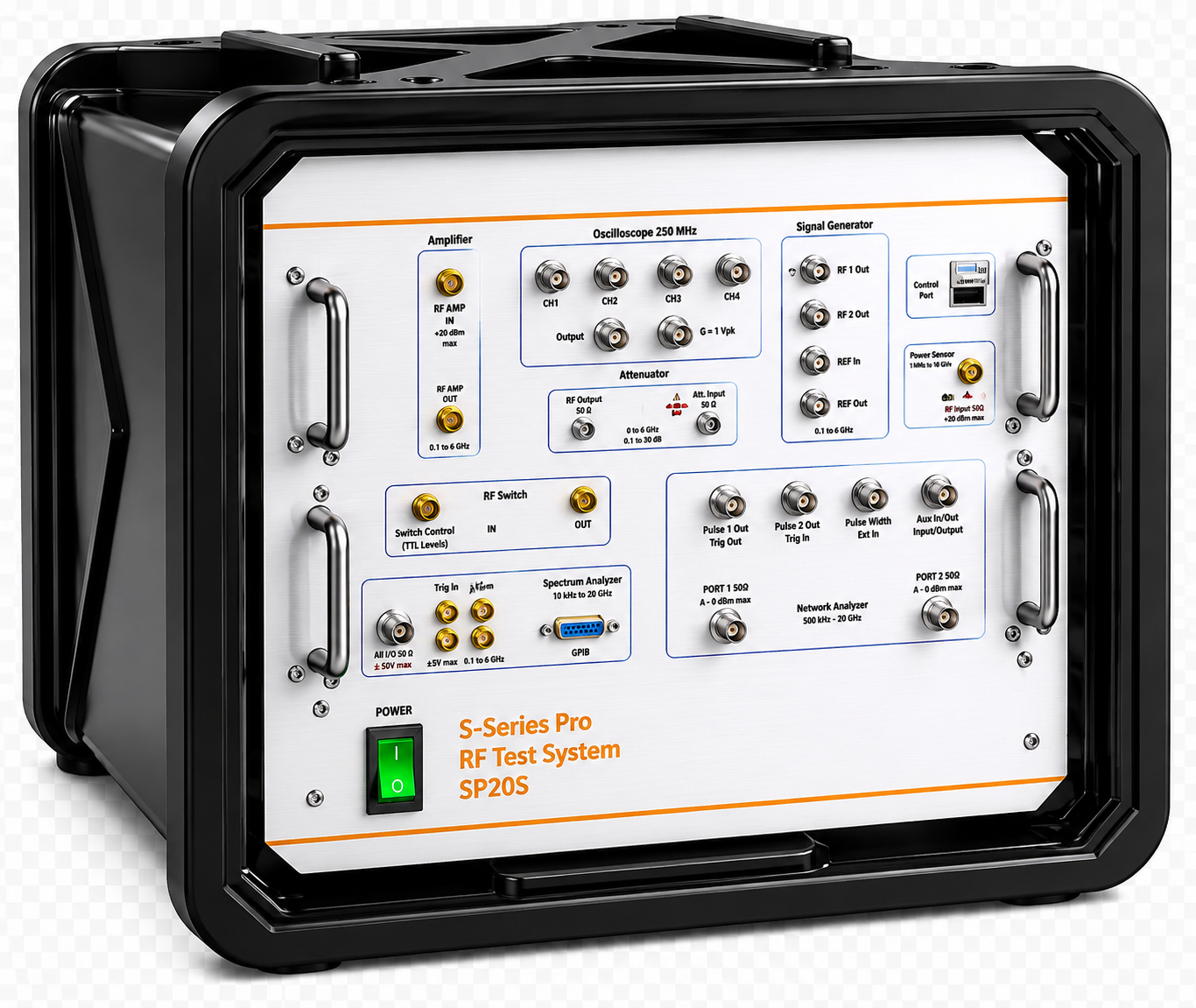

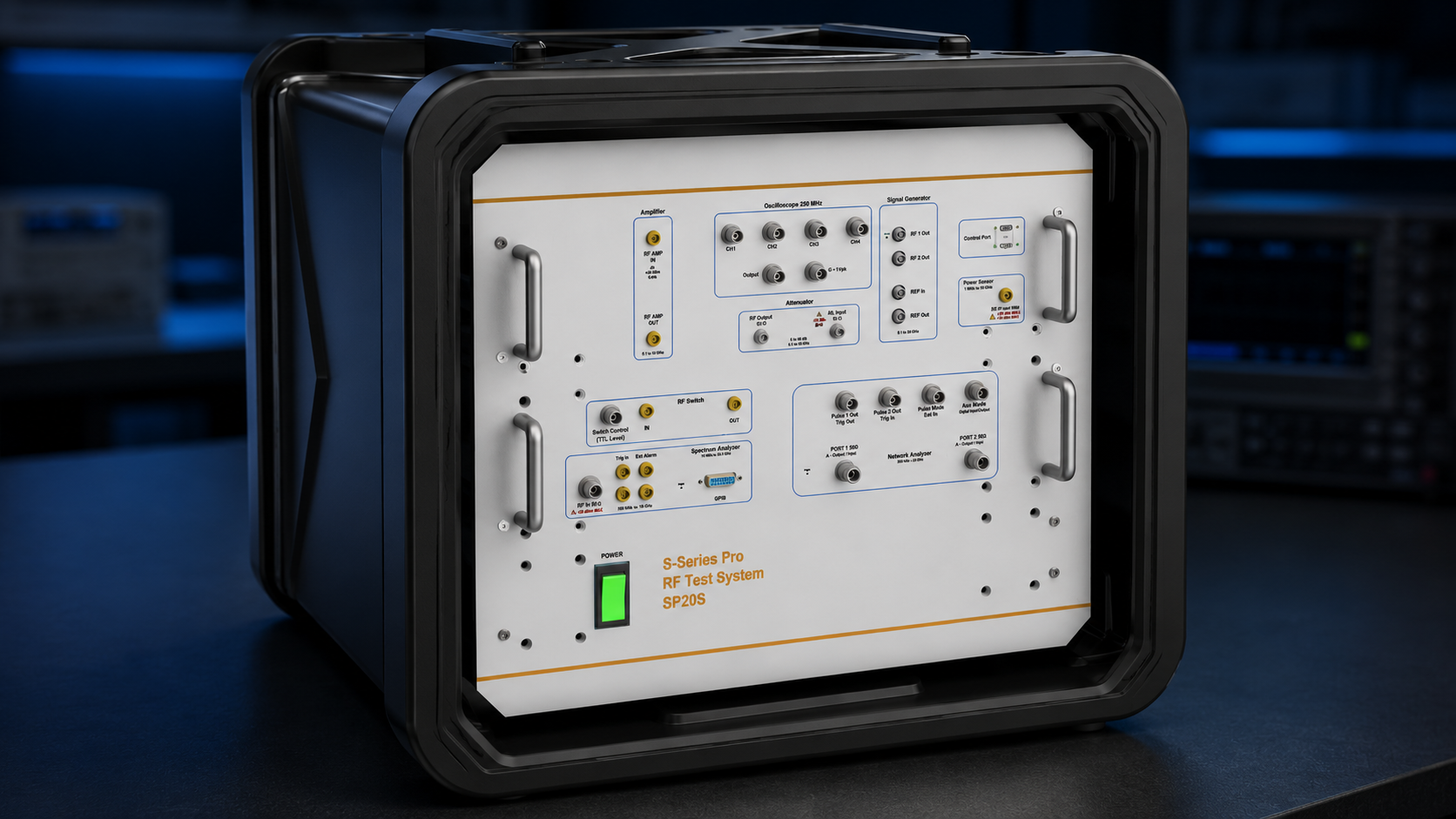

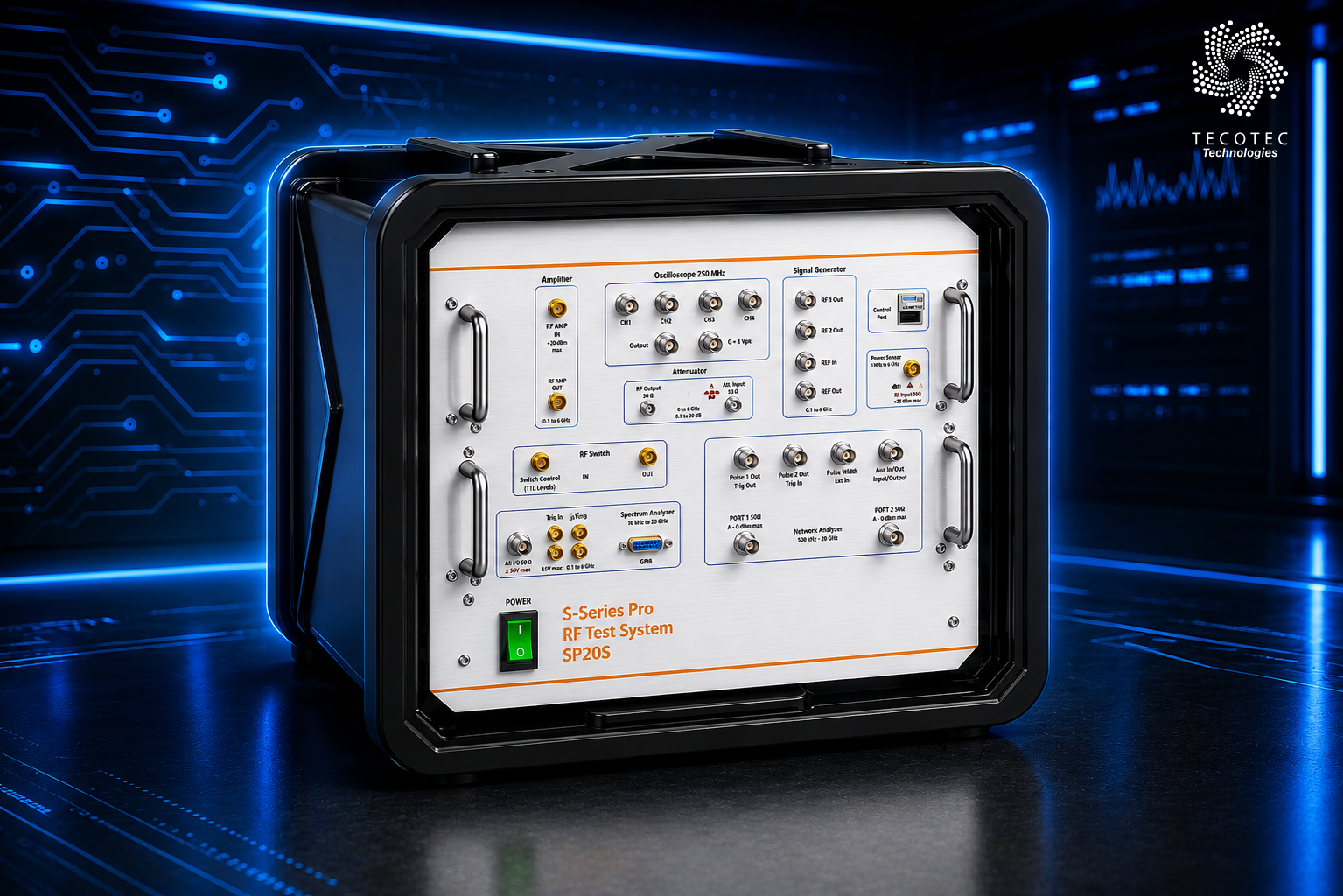

The RF Test Set is an advanced, all-in-one test system that integrates key instruments, including a real-time spectrum analyzer, a vector network analyzer, a signal generator, a tracking generator, an RF power meter, a power amplifier, a programmable attenuator, and a 4-channel oscilloscope, into a single, compact platform.

It supports frequencies up to 20 GHz and provides standalone or integrated operation via PC or optional 17”/28” controller monitors. Each instrument is independently controllable through a Windows-based software suite, enabling flexible test configurations for R&D, EMC, and automated production environments

Features

Combine 8 instruments in one system, frequency up to 20 GHz
Perform real-time spectrum analysis with I/Q streaming to 40 MHz
Analyze vector networks with 130 dB dynamic range, 200k points
Generate RF signals with 1 Hz resolution, low phase noise
Capture signals via 4-channel, 250 MHz, 1 GSa/s oscilloscope
Measure RF power (1 MHz–26.5 GHz) with True RMS sensor
Demodulate digital signals (QPSK, 16-QAM, ASK, etc.)
Conduct scalar analysis using spectrum + tracking generator
Control programmable attenuator up to 30 GHz
Integrate 1W amplifier (100 MHz–18 GHz, 27 dB gain)
Operate via USB/software or 17″/28″ monitor controller
Connect with USB, LAN, HDMI, Wi-Fi interfaces
Mount in rack; compact 19″x16″x5.5″ chassis, 90–260 VAC input

Benefits

Optimizes RF workflows by combining key test functions in one system
Minimizes setup time and equipment footprint for lab or production use
Improves measurement accuracy with wide frequency coverage and low phase noise
Adapts to various applications with modular and scalable configurations
Increases productivity through unified software and automated control
Supports advanced signal analysis including vector measurements and digital demodulation
Simplifies connectivity with USB, LAN, HDMI, and Wi-Fi interfaces
Enables flexible deployment with compact, rack-mountable design
