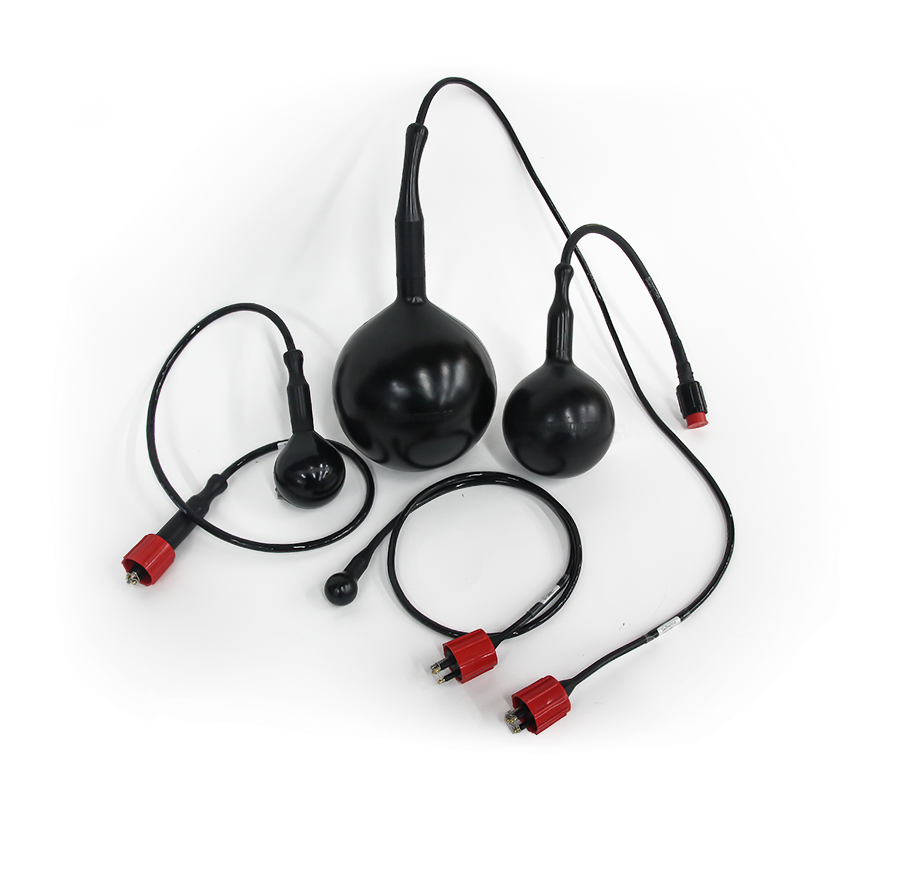

Spherical Transducers (M18C)

GeoSpectrum's spherical transducers are suitable for a variety of applications, including active/passive sonar, marine mammal detection (MMD), acoustic data transmission, and subsea communications. A spherical transducer may be used with an M620-110 power amplifier if it is intended to be used as a sound source or an M303 transceiver board if it is intended to serve as a sound source and a receiver. GeoSpectrum's spherical transducers provide an omnidirectional response and come in a variety of sizes ranging from 6″ to 0.5″ in diameter and have resonant frequencies covering a band of 11 kHz–150 kHz. GeoSpectrum's spherical transducers are effective as both transmitters and receivers.

Features

M18C-1.0: OD 2.9cm, Resonance Frequency 68000Hz, TVR @ Resonance 148dB re µPa/V@1m, OCV @1kHz -198.5dB re V/µPa, Max Depth 2500m, Weight 0.2kg, Capacitance 10.2nF | M18C-1.5: OD 4.4cm, Resonance Frequency 47000Hz, TVR 148dB, OCV -195.0dB, Max Depth 2500m, Weight 0.3kg, Capacitance 23.5nF | M18C-2.5: OD 6.7cm, Resonance Frequency 27000Hz, TVR 148dB, OCV -190.0dB, Max Depth 2500m, Weight 0.5kg, Capacitance 42.5nF | M18C-4.0: OD 10.8cm, Resonance Frequency 16500Hz, TVR 148dB, OCV -186.5dB, Max Depth 2500m, Weight 1.4kg, Capacitance 57.3nF | M18C-6.0: OD 15.7cm, Resonance Frequency 12000Hz, TVR 148dB, OCV -185.0dB, Max Depth 2500m, Weight 4.8kg, Capacitance 80nF
