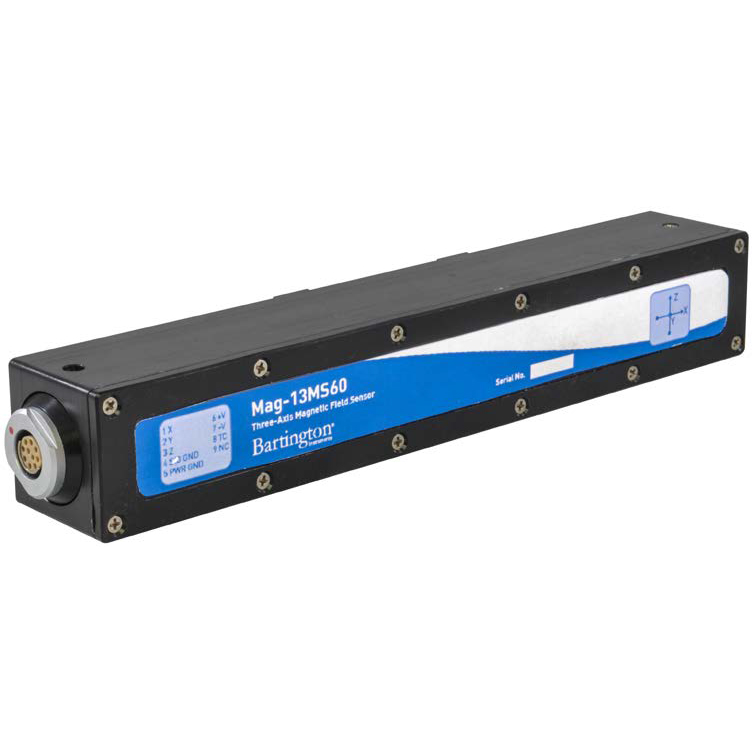

Bartington 3-Axis Fluxgate (Mag-03/Mag-13)

Bartington 3-Axis Fluxgate (Mag-03/Mag-13)

Bartington 3-Axis Fluxgate Sensors are compact, high performance fluxgate sensors with integral electronics that provide precision measurements of static and alternating magnetic fields in three axes. Mag-13 Fluxgate Sensors can be used for most applications where high precision magnetic field measurements are required. A very low noise option is now available!

Features

Range: ±60μT to ±1000μT | Bandwidth: >3kHz (-11dB/octave roll-off) | Noise: down to <6pT/√Hz at 1Hz | Scaling Temperature Coefficient (nT/°C): ±1 (6µV/°C) at ±1000 mT Range | Operating Temperature: -40 to +70°C | Dimensions, Mag-13MS: 32 x 32 x 225mm | Dimensions, Mag-13MC: Ø 25 x 225mm

Use as feedback sensors on active cancellation systems | Reference magnetometer for calibration purpose | Magnetic surveys of magnetic anomalies at small and large scales | Geophysics including time domain electromagnetic and magneto-telluric | Monitoring of magnetic fields during experiments
