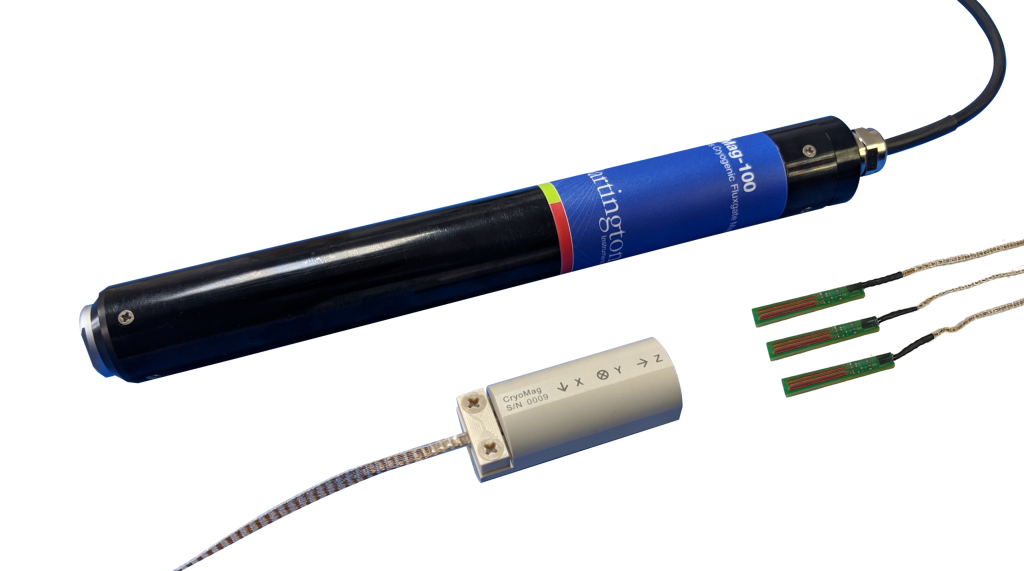

Bartington CryoMag (Cryogenic Magnetometer)

These three-axis fluxgate magnetometers operate at temperatures down to 2K, making them ideal for use in cryostats for superconducting radio frequency cavities, quantum computing, and other ultra-low temperature environments. These fluxgate magnetometers are available with a standard single probe, or with multiple sensor heads, all offering high precision measurement of static and alternating magnetic fields.

Features

Operating temperature down to 2K | Noise level down to <20pTrms/√Hz at 1Hz | Frequency response from DC to 1kHz | Measuring ranges of ±70, ±100, ±250 and ±500µT | A single 3-axis probe, or 3 single-axis sensor heads

Application

Magnetic field monitoring in cryostats and other low temperature environments | Use as feedback sensors in active magnetic field cancellation systems

PERSONAL CONSULTATION

Do you have questions about this product or a special application? Get in touch with our experts!

info@tecotec.tech (+84) 243 576 3500
