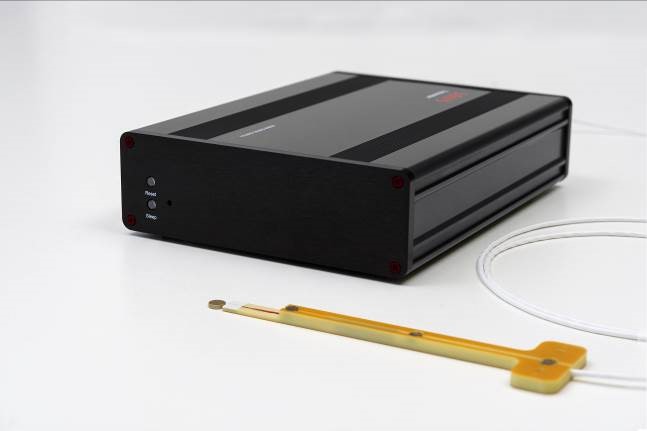

Senis 3MH2 Digital Transducer
SENIS 3MH2 High-Quality 3-D Digital Transducer is an indispensable high-quality instrument engineered to excel in demanding measurement applications. Offering a DC measurement accuracy of less than 0.1% (1’000ppm) and remarkable stability in digital readings, the 3MH2 ensures reliable and precise data acquisition. Its compact 3D Hall IC in the C Probe Type provides an impressive spatial resolution of 0.10 x 0.01 x 0.10 mm³. This versatile transducer guarantees probe interchangeability by storing calibration data in an integrated EEPROM and exhibits high-temperature stability of less than 100ppm/°C. With magnetic DC resolution better than 1ppm @ ±2T and up to four selectable magnetic field ranges, it adapts to a wide range of applications. Featuring USB2.0 and LAN connectivity, a 24-bit A/D converter, and various triggering modes, the 3MH2 is ideal for mapping magnetic fields, characterizing undulator systems, current sensing, laboratory and production line applications, quality control and monitoring of magnet systems (generators, motors, etc.).
Features
High measurement DC accuracy: < 0.1% (1’000ppm) | Very good stability of digital readings | Very high spatial resolution: 0.10 x 0.01 x 0.10 mm3 (C Probe Type) | Probe interchangeability ensured via integrated EEPROM calibration data | High temperature stability: < 100ppm/°C | Very high magnetic DC resolution: better than 1ppm @ ±2T | Up to 4 selectable field ranges: 100mT, 500mT, 2T, 20T (calibrated up to 9T) | USB2.0 serial communication and LAN | Triggers Internal and External – Single shot, Manual and Continuous | 24-bit A/D Converter
