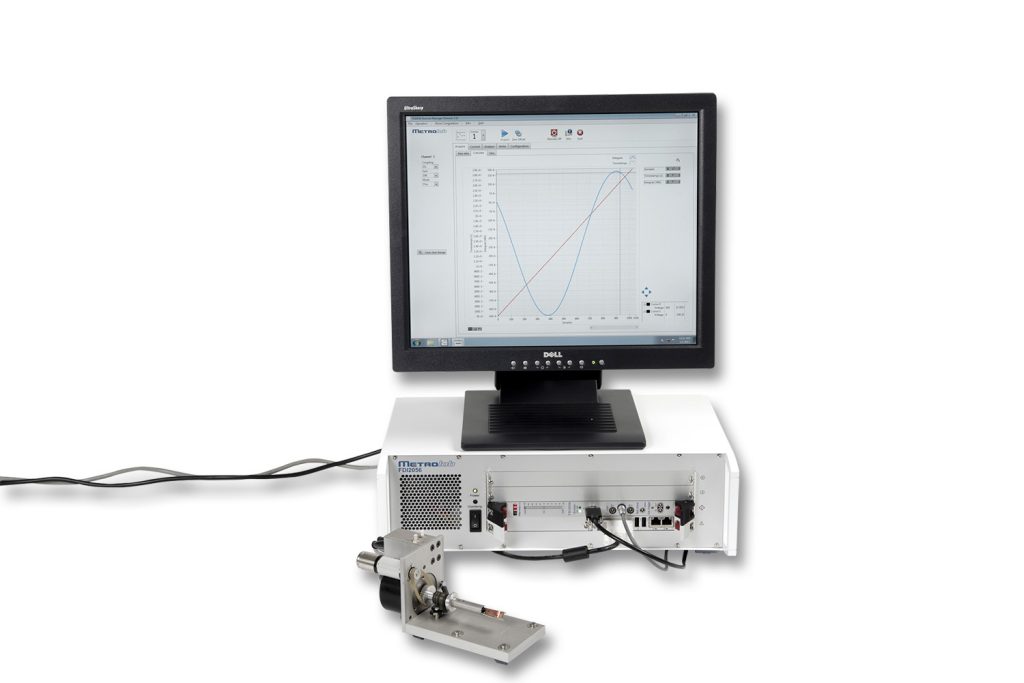

Metrolab Fast Digital Integrator, FDI2056

The Metrolab FDI2056 Fast Digital Integrator is a high precision, high speed voltage integrator. Combined with an appropriate flux coil, it makes an extraordinarily fast, flexible and sensitive magnetometer.

Features

Flexible: Wide range of inputs, to ±20V max | Fast: 500 kS/s | Precise: 18 bit resolution | Real-Time Data Acquisition

Application

Measurement of rapidly changing fields | Flip-coils to measure the field at a point | Moving coils to measure the enclosed flux | B/H hysteresis loop measurement | Rotating coil system for measuring angular map of quadrupoles | Moving-wire system for measuring linear map of narrow-gap linear dipole
