Type 8103 (Miniature Hydrophone)

Type 8103 (Miniature Hydrophone)

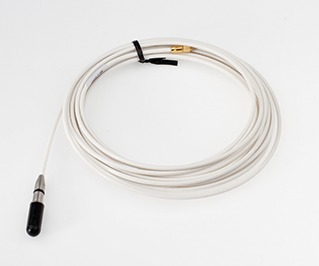

Miniature Hydrophone Type 8103 is a small piezoelectric transducer designed for high-frequency laboratory and industrial use. The instrument is particularly useful in the acoustic study of marine animals or for cavitation measurement. Miniature Hydrophone Type 8103 is designed for high-frequency laboratory and industrial use and is supplied with an integral 6m cable terminated 10-32 unf microdot plug.

Features

Sensitivity: 0.029 mV/Pa | Lower frequency: 0.1 Hz | Higher frequency: 180 kHz | Maximum operating static pressure: 253–262 dB (4×10^6 Pa) depending on variant | Mounting space: 50 x 9.5 x 50 mm (1.97 x 0.37 x 1.97 in)

Calibration reference standards | Ultrasonic measurements in liquids | Cavitation measurements | Laboratory/industrial measurements in liquids and gases | As underwater projectors (8103, 8104, and 8105) | Noise measurements in humid and polluted atmospheres
