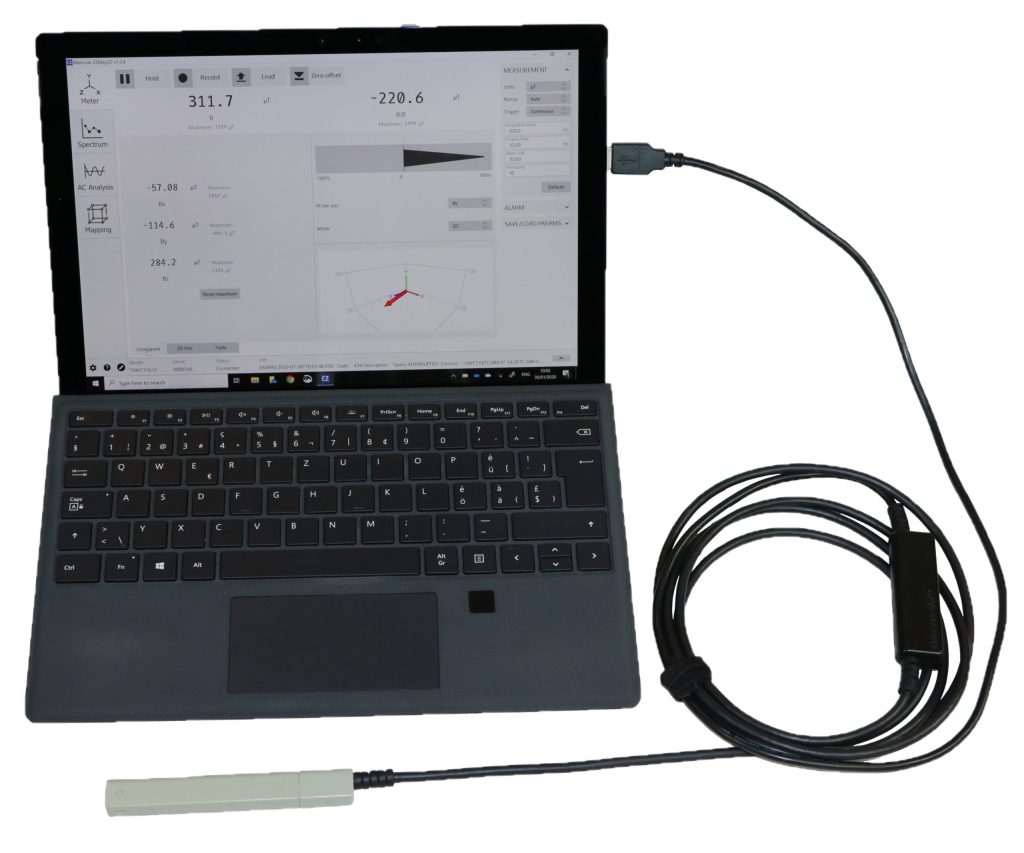

Metrolab THM1176/TFM1186 USB Teslameter

The Metrolab THM1176 and TFM1186 are unique three-axis Magnetic Field Probes with USB Interface and power via the interface. Fields from nT to 20 T, DC to 1kHz, can be measured with ±1% accuracy. All three axes of the magnetic field are simultaneously measured to give an accurate total field amplitude independent of Probe orientation. The entire instrument has been reduced to a cable that can plug directly into the USB port on your PC or battery-powered handheld computer.

Features

Range: nT to 20T | Bandwidth: DC to 1kHz | Accuracy: ±1% | Simultaneous 3-axis field measurement (orientation-independent total field) | USB-powered, no external power supply needed | Available as desktop USB probe or with rugged handheld tablet configuration | PC software compatible with Windows 7/Vista/XP/Server 2008 and Mac OS X

Application

Testing of medical devices and monitors for MRI compatibility | Safety control in an MRI environment (e.g. 5 Gauss line mapping) | Permanent magnet QC | Mapping of magnet fringing field contours | Evaluating magnetic shielding effectiveness | Magnetic remanence mapping | Magnetic particle inspection waveforms | Compliance with IATA regulations for magnet shipments
