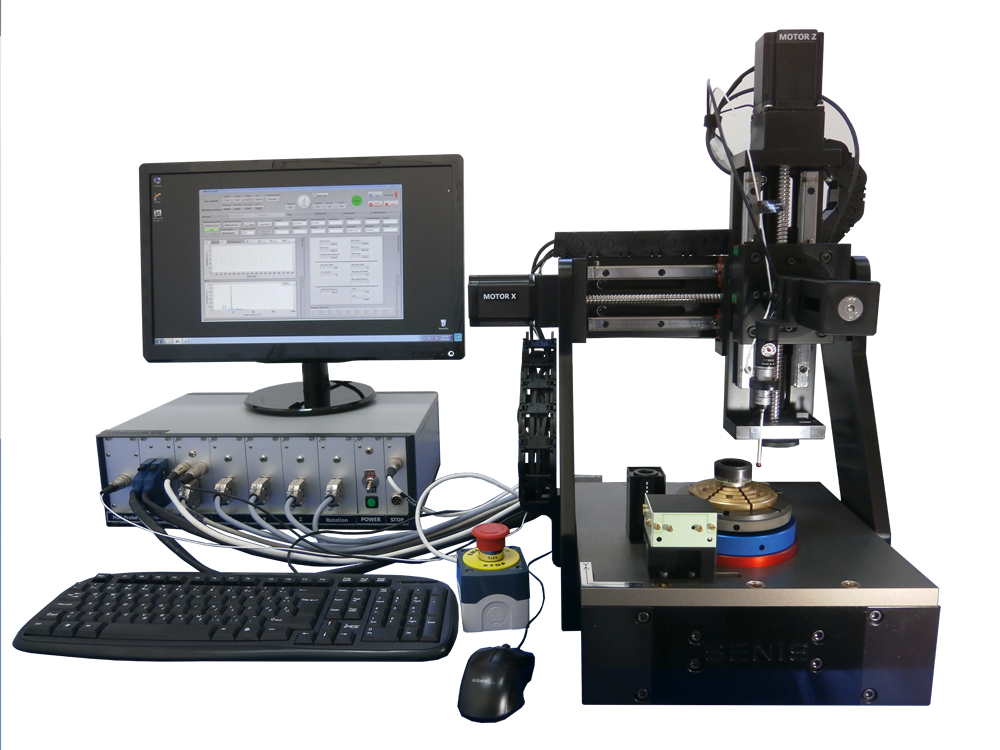

Senis Magnetic Field Mapper (MMS-1A-RS/MMS-1X-RS)
Magnetic Field Mapping System MMS-1A-RS / MMS-1X-RS allows a user to create high resolution map of the magnetic field around an electromagnet or permanent magnet. The map of the magnetic field may be given in the form of color coded 2D or 3D isometric visual display on PC screen, tables of the numerical values of the three components, the total magnetic field, and so on. Due to the unique features of the applied integrated Hall probe, all three components of the magnetic field are measured simultaneously at virtually the same point. The system is controlled by an extremely easy-to use-software built on MS Windows platform.
Features
Scanning Spatial Resolution: 1µm (linear), 0.022° (rotational) | Scanning Speed: adjustable up to 50mm/sec | Magnetic Field Measurement Accuracy: typically 0.1% of full range | Magnetic Field Range: ±100mT, ±500mT or ±2000mT | DC and AC Bandwidth: DC to 25kHz (3-axis), DC to 75kHz (1-axis optional) | Standard Rotating Stage and Non-magnetic Multi-jaw Scroll Chuck | Standard Touch Sensor to Protect Probe | Scanning Volume differs by model: MMS-1A-RS 125 x 125 x 150mm (optional 290mm z-axis); MMS-1X-RS 570 x 570 x 150mm (optional 290 or 380mm z-axis)
Application
Quality control of permanent magnets | Quality assessment tool in production, for assemblies such as loudspeakers, multi-pole magnets, photocopier rollers and magnetic film | Development of magnet systems | AC magnetic field mapping | Application in laboratories and in production lines
