Bartington Mag-01H D/I System

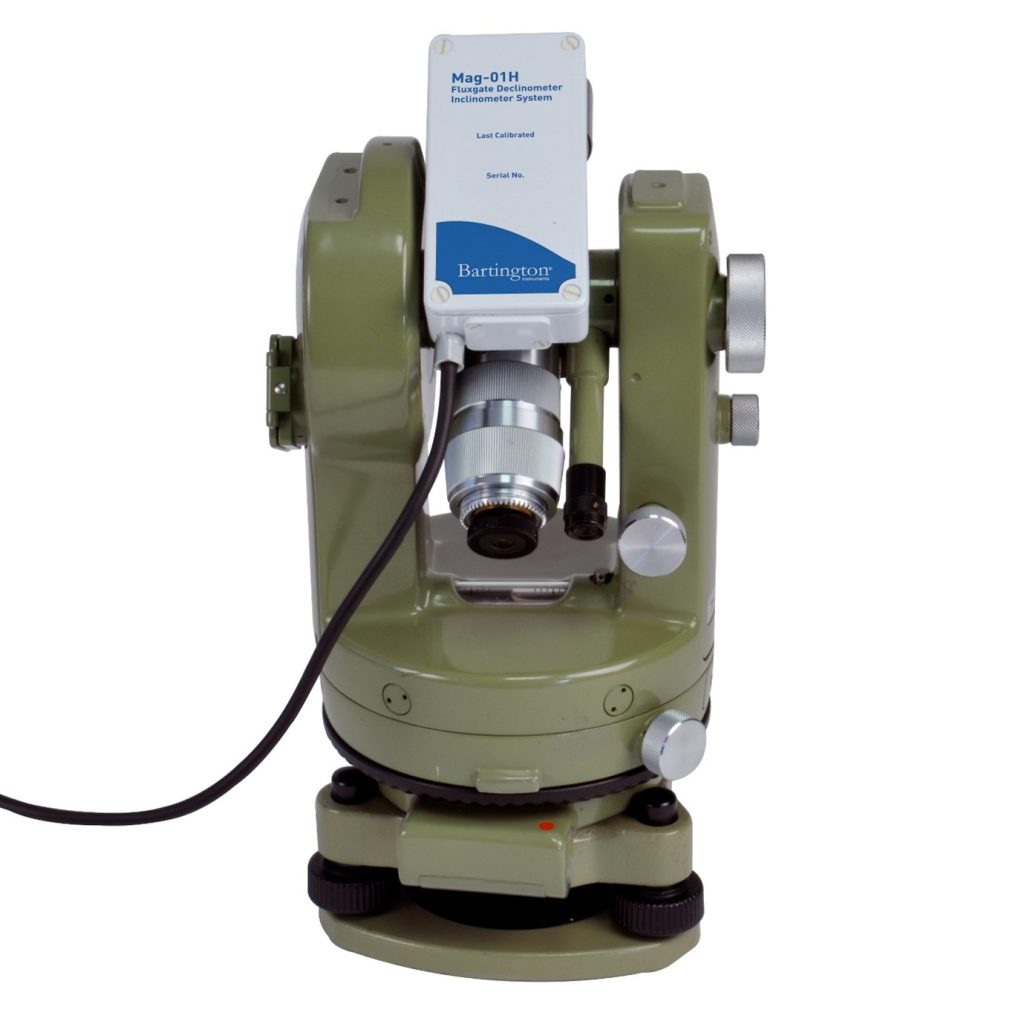

The Mag-01H D/I system consists of a precision single-axis fluxgate magnetometer mounted on top of a non-magnetic theodolite. The fluxgate connects to the Mag-01H that provide power, drive electronics and display for the fluxgate element. The primary purpose of the instrument is to measure the magnetic declination and inclination of a magnetic field (typically the Earth's magnetic field) with a high degree of precision. Commonly used in magnetic observatories around the world, the system can also be used to perform compass pad calibration or be used in the cross calibration of other magnetometers typically mounted in range finders.

Features

Excellent angular precision to at least 6 seconds of arc | Low noise and offsets | Non-magnetic Wild T1 theodolite

Application

Magnetic Observatory Absolute Declination/Inclination measurement | Compass pad calibration | Rangefinders cross calibration
