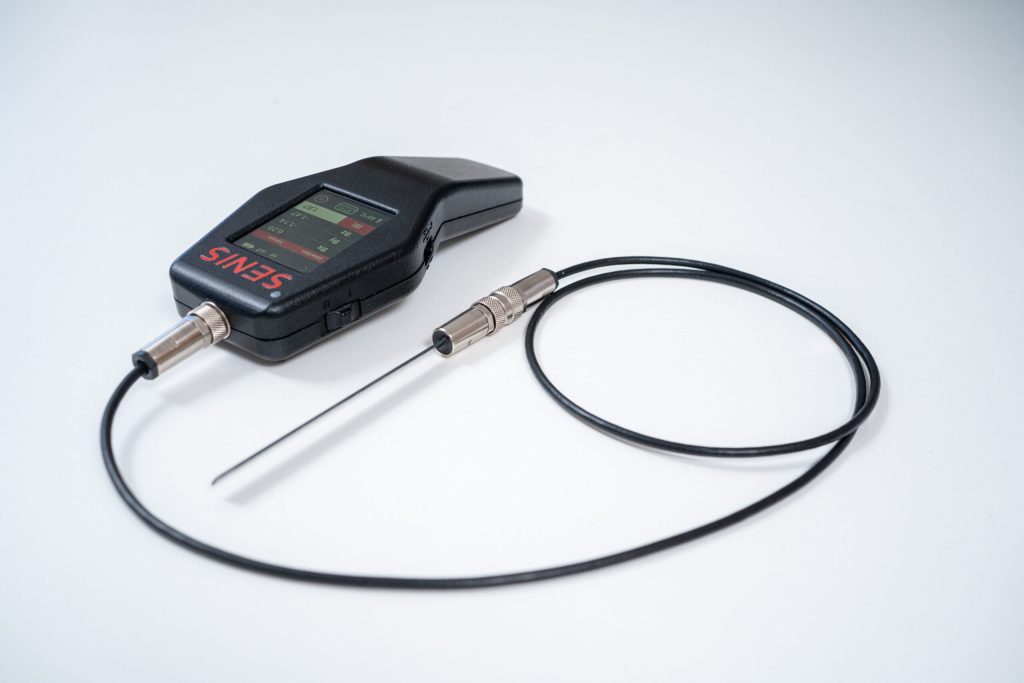

Senis 3MH1-E Handheld Teslameter

The 3MH1-E is an easy-to-use portable teslameter which allows users to measure all 3 components of the magnetic field. It simultaneously measures the magnetic field with a direct view of the magnetic field strength on the integrated touchscreen. The 3MH1-E probe can be detached from base unit and used with a cable for hard to reach places.

Features

Hand-held Teslameter with Touch Screen and internal Battery | Displays field components Bx, By, Bz and total field B | Total field B measurement independent of Probe orientation (isotropic measurement) | Field ranges of 60mT, 400mT, 4T | Measures magnetic field at a “point” of 100µm x 100µm x 10µm | High magnetic accuracy and resolution; B accuracy +/-20uT at 0.5mT (5G) | Dedicated cable for increasing accessibility of the probe | Probe holder and probe are fully non-magnetic

PERSONAL CONSULTATION

Do you have questions about this product or a special application? Get in touch with our experts!

[email protected] (+84) 243 576 3500
