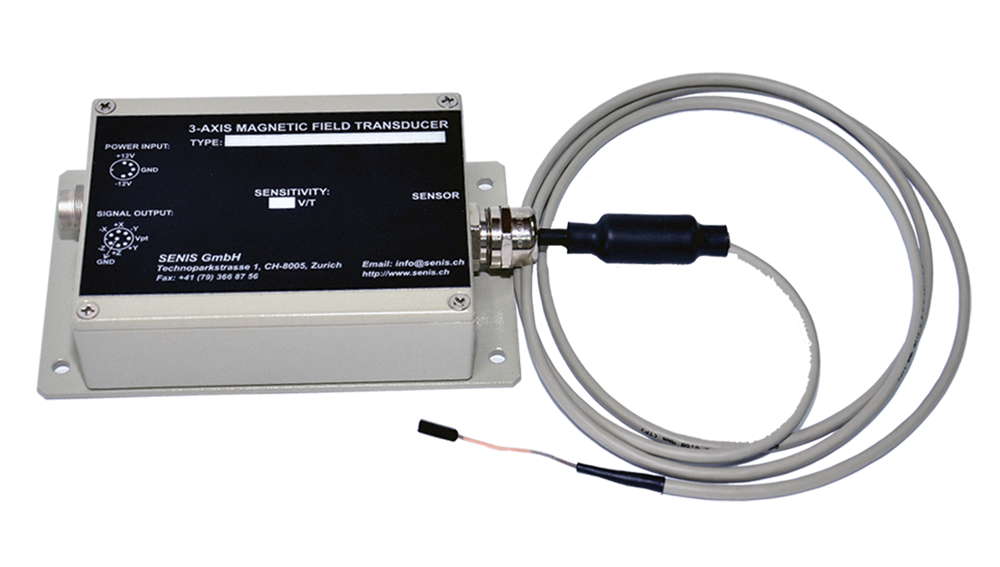

Senis Magnetic Field Transducer, 3-Axis (F3A/F3B)

A SENIS Hall magnetic field transducer consists of two modules: Module H, consisting of the Hall probe and the CaH cable, and Module E, containing the analog electronics for signal conditioning. To build up a complete measurement system, the module E needs to be connected to an adequate power supply and to a voltmeter (or A/D converter) for each measured component of a magnetic field. F3B Transducers have fixed cable from Probe (H module) to Electronics (E module). F3A Transducers were phased out in March 2023 for fixed cables, and are only for detachable probe cables going forward.

Features

Fully integrated CMOS 3-axis (Bx, By, Bz) Hall Probe | Very high spatial resolution (By: 0.03 x 0.005 x 0.03mm3; Bx and Bz: 0.15 x 0.01 x 0.15 mm3) | High angular accuracy (orthogonality error less than 0.1°) | Virtually no planar Hall Effect | High frequency bandwidth (DC up to 25kHz) | High disturbance immunity | Negligible inductive loops on the Probe | Integrated temperature sensor on the probe for temperature compensation | Range: ±20mT … ±20T
