Bartington Mag-01H (1-axis Fluxgate)

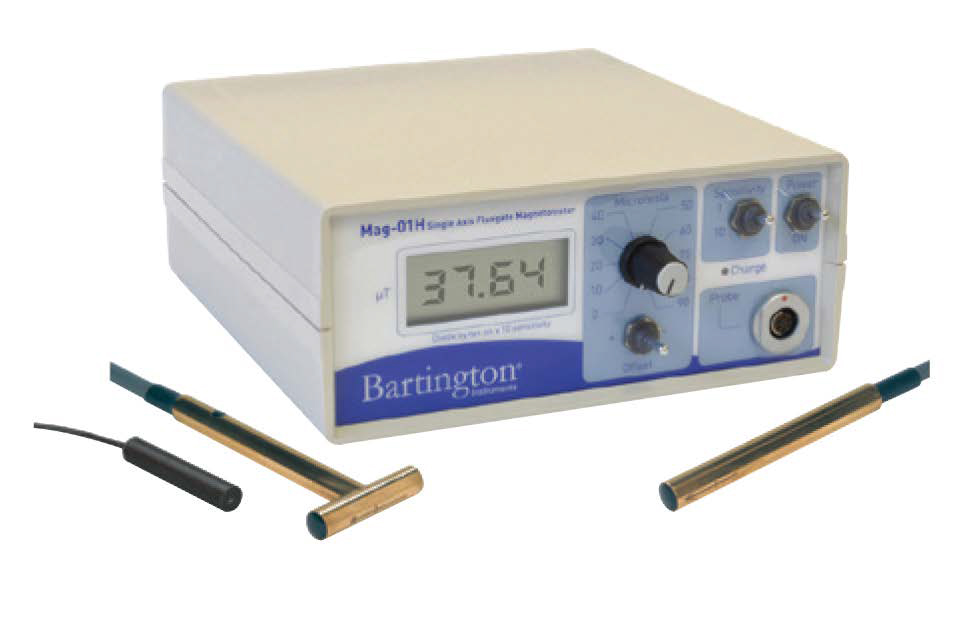

The Mag-01H is a portable high performance instrument that provides precision measurements of the direction and intensity of magnetic fields from 0.1nT (1µG) to 2,000µT (20G) with a frequency response of DC to 10Hz. Axial and transverse probes are available together with unpackaged probes for cryogenic applications. The Mag-01H instrument may be powered by either mains voltage or internal battery, and have a 4½ digit display and an analog output. The internal rechargeable sealed lead acid battery provides up to 16 hours continuous use and may be recharged using the mains adaptor provided. The Mag-01H has an additional x10 sensitivity switch for a resolution of 0.1nT and an offset control for up to ±90µT in 10µT steps. This instrument feature superb linearity, accuracy, and very low drift with time and temperature. Calibration is traceable to international standards, and a re-calibration service is available.

Features

Range: 0.1nT (1µG) to 2,000µT (20G) | Frequency response: DC to 10Hz | Powered by mains or internal battery, 4½ digit display, analog output | Battery: up to 16 hours continuous use | x10 sensitivity switch for 0.1nT resolution | Offset control up to ±90µT in 10µT steps | Superb linearity, accuracy, and very low drift with time and temperature | Calibration traceable to international standards
