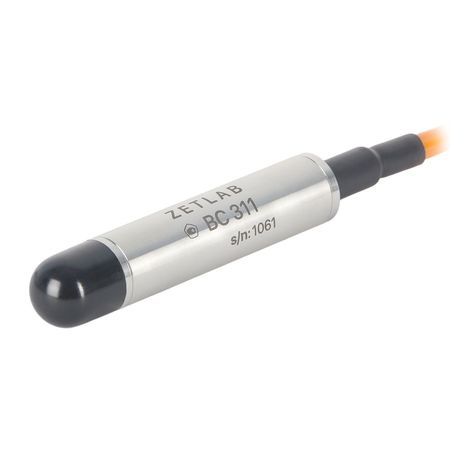

BC 311
BC 311 underwater/threaded hydrophone — reversible hydrophone without an integrated amplifier; used as receiver and transmitter tool; wide-band analysis of poor signals; observing the long-distance propagation of acoustic signals; version options: underwater (immersible) or threaded. Hydrophone BC 311 is a robust spherical compact hydrophone for absolute measurements of the sound spreading in actuating medium. The hydrophone has first-class characteristics in all geometry directions. It has omnidirectional characteristics in angular range, 270° wide in the x-z plane, and 360° in the x-y plane. PURPOSE: MEASUREMENT — sound spreading in water; ultrasonic in a liquid medium; noise in wet and polluted media; sound in liquid and gas medium (laboratory and factory). APPLICATION — as calibration standard; as sound projector. OBSERVATION — marine mammals sounds; cavitation processes.
Features
Labelling: BC 311 | Version: underwater / threaded | Nominal voltage sensitivity: 65 µV/Pa (underwater) / 39 µV/Pa (threaded) | Nominal charge sensitivity: 0.35–0.65 pC/Pa (underwater) / 0.22 pC/Pa (threaded) | Sensitivity level (rel. 1V/µPa): -204 dB | Frequency band: 3…100,000 Hz | Max. measured sound pressure range: 100 kPa | Max. attenuating sound pressure range: up to 10 MPa | Limit static line pressure: 60 MPa | Capacity exclusive of cable: min. 6 nF | Explosion-proof version: — (underwater) / upon request (threaded) | Casing material: stainless steel | Dimensions (length × casing diameter): 173×⌀23 mm (underwater) / 171×⌀23 mm (threaded) | Coupling thread: — (underwater) / M20×1.5 (threaded) | Cable standard length: 10 m (underwater) / 2 m (threaded) | Max. cable length: 250 m | Outer cable diameter: 10.2 mm | Cable type: coaxial, PVC coating, central wire, shielded, sulfuric-acid resistant | Cable connection: BNC | Measurements operation medium: water, air, oil and oil products, natural gas | Operation medium temperature: 0…+60 °C | Environment air temperature: −60…+80 °C
