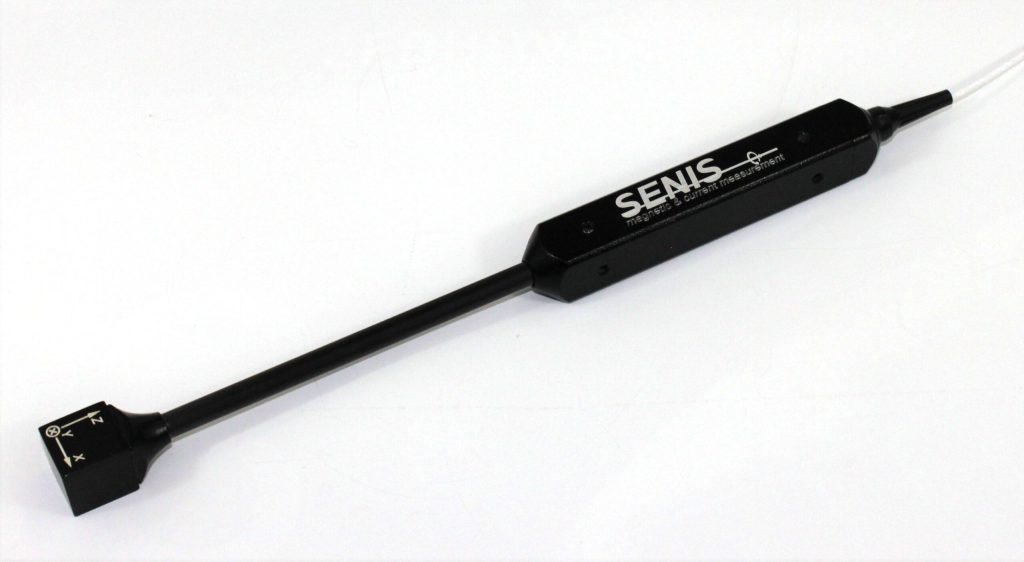

Senis Magnetic Field Transducer, 3-Axis AC

Senis Magnetic Field Transducer, 3-Axis AC

The Senis 3-Axis AC Magnetic Transducer 3DACMT-1 is a compact instrument to measure all 3 components of alternating magnetic fields with very high resolution in a small volume. It incorporates three groups of mutually orthogonal coils, analog integrators and amplifiers within a small cube and generates 3 high level output signals that are immune to electromagnetic disturbances. The sensing cube is completely non magnetic and therefore does not disturb the external field. The Senis 3DACMT-1 Transducer is ideally suited to measure and map AC magnetic fields in noisy environments with field resolution better than 1.5μT.

Features

Frequency range from 10kHz to 200kHz | Magnetic Field Resolution <1.5µTrms | Small probe volume of about 3cm³ | Non-invasive: probe doesn’t modify the measured magnetic field | Highly linear response | High transduction accuracy of ±1% | Phase Accuracy: <3° at 85kHz | Angular accuracy <±1° | Negligible cross-talk | Common center of coils for all three axes | Insensitive to electrical fields or capacitive coupling | Analog output

Measuring and Mapping AC magnetic fields in the frequency range 10 kHz to 200 kHz | Electric Vehicle Inductive or Wireless Charging Pad magnetic field | Coil Array magnetic field for Non-contact spatial position location
